| Place of Origin: | CHINA |
|---|---|
| Brand Name: | DONGJIAXIN |
| Certification: | QS |
| Model Number: | N-YJV |
| Minimum Order Quantity: | Negotiable |
| Price: | Negotiable |
| Packaging Details: | Steel wooden drum, Coil In Foil / Drum |
| Delivery Time: | 7-15 working days |
| Payment Terms: | L/C, T/T, Western Union, MoneyGram |
| Supply Ability: | 100KM/WEEK |
| Model Name: | N-YJV | Voltage Suitable:: | 0.6/1kV |
|---|---|---|---|
| Conductor Type:: | Class 2 | Nos.of Core:: | 2~5 |
| Insulation :: | XLPE | Jacket:: | PVC |
| Temperature Rating：: | -25C Up To +90℃ | Size:: | 1.5~630mm² |
| High Light: | 70mm2 xlpe pvc cable,Cu xlpe pvc cable,1Kv cu xlpe cable |
||

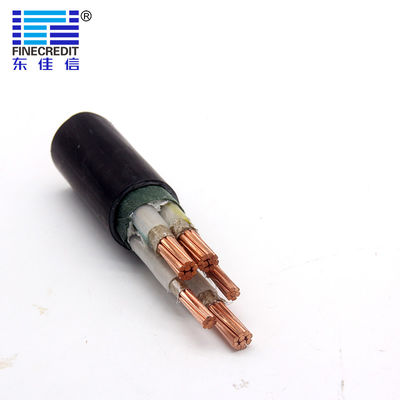

▼4x120 + 1x70 mm2 Power Cable, 0.6/1 Kv, Cu XLPE PVC
1. Application
1kV for Fixed installations such as distribution networks or industrial installations.
2. Constraction
a) Core Conductor :annealed copper (stranded core)
b) Popular sizes: 2~5 core x1.5~630mm²
c) Insulation: XLPE
d) Jacket: PVC
e) Voltage suitable: 0.6/1kV
f) Standards Certificates:IEC 60502-1
3. Advantage
1. Heat resistance:
XLPE with a three-dimensional network structure has excellent heat resistance. It will not decompose and carbonize below 200℃, the long-term working temperature can reach 90℃, and the thermal life can reach 40 years;
2. Insulation performance:
XLPE maintains the original good insulation properties of PE, and the insulation resistance is further increased. The dielectric loss tangent value is very small, and it is not greatly affected by temperature.
3. Mechanical properties:
Due to the establishment of new chemical bonds between macromolecules, the hardness, stiffness, wear resistance and impact resistance of XLPE have been improved, thereby making up for the shortcomings of PE being vulnerable to environmental stress and cracking.
4. Technical parameters
2 Core&3 Core
| Cross section of conductor(mm²) | Conductor structure | Insulation Thickness(mm) | Copper sheath thickness(mm) | Approx.cable diameter(mm) | Max resistance of conductor at 20℃ (Ω/km) |
| 2×6 | 1 | 0.7 | 1.8 | 13.2 | 3.08 |
| 2×10 | 7 | 0.7 | 1.8 | 15.4 | 1.83 |
| 2×16 | 7 | 0.7 | 1.8 | 17.4 | 1.15 |
| 2×25 | 7 | 0.9 | 1.8 | 20.6 | 0.727 |
| 2×35 | 7 | 0.9 | 1.8 | 22.6 | 0.524 |
| 2×50 | 10 | 1.0 | 1.8 | 26.2 | 0.387 |
| 2×70 | 14 | 1.1 | 1.9 | 29.8 | 0.268 |
| 2×95 | 19 | 1.1 | 2.0 | 34.0 | 0.193 |
| 2×120 | 24 | 1.2 | 2.2 | 37.4 | 0.153 |
| 2×150 | 30 | 1.4 | 2.3 | 41.2 | 0.124 |
| 2×185 | 37 | 1.6 | 2.5 | 45.6 | 0.0991 |
| 2×240 | 48 | 1.7 | 2.6 | 51.0 | 0.0754 |
| 2×300 | 61 | 1.8 | 2.8 | 56.0 | 0.0601 |
| 3×6 | 1 | 0.7 | 1.8 | 14.7 | 3.08 |
| 3×10 | 7 | 0.7 | 1.8 | 16.9 | 1.83 |
| 3×16 | 7 | 0.7 | 1.8 | 19.1 | 1.15 |
| 3×25 | 7 | 0.9 | 1.8 | 22.5 | 0.727 |
| 3×35 | 7 | 0.9 | 1.8 | 24.7 | 0.524 |
| 3×50 | 10 | 1.0 | 1.8 | 27.8 | 0.387 |
| 3×70 | 14 | 1.1 | 1.9 | 31.6 | 0.268 |
| 3×95 | 19 | 1.1 | 2.0 | 38.0 | 0.193 |
| 3×120 | 24 | 1.2 | 2.1 | 42.0 | 0.153 |
| 3×150 | 30 | 1.4 | 2.3 | 45.8 | 0.124 |
| 3×185 | 37 | 1.6 | 2.4 | 50.9 | 0.0991 |
| 3×240 | 48 | 1.7 | 2.6 | 57.7 | 0.0754 |
| 3×300 | 61 | 1.8 | 2.7 | 63.0 | 0.0601 |
FAQ
* How to assure the quality of products?
1. Most of our products have certification.
2. Our Lab staff will test the material and check the process card before production.
3. The O.D tester is testing all the time during production, and the production line is always under control.
4. The product will be tested by Lab staff after production.
* Do you offer free samples or not?
1. If we have inventory about the sample you need and the total amount is not large, it's free.
2. If we don't have inventory, according to our company's rule, sample and freight costs need to be paid by your esteemed company. And we will return the sample cost to you when you place the first order with us. Thanks for your support.
* When I want customized products, how to do it?
We have professional equipment, technicians & skilled employees, OEM & customized service is welcome. Drawings or samples are required. Of course, the purchased quantity should meet our MOQ.
▼ Cable Drum Data:
| CABLE DRUMS | D1=Flange Diameter(mm) | W=Useful Width (mm) | D2=Barrel Diameter(mm) |
 |
1000 | 700 | 500 |
| 1100 | 700 | 550 | |
| 1200 | 700 | 600 | |
| 1400 | 750 | 710 | |
| 1600 | 900 | 900 | |
| 1800 | 1120 | 1000 | |
| 2400 | 1150 | 1300 |
