| Place of Origin: | CHINA |
|---|---|
| Brand Name: | JIAXIN |
| Certification: | TUV,ISO,CE,IEC |
| Model Number: | H1Z2Z2-k |
| Minimum Order Quantity: | Negotiable |
| Price: | Negotiable |
| Packaging Details: | Steel wooden drum |
| Delivery Time: | 7-15 working days |
| Payment Terms: | L/C, T/T |
| Supply Ability: | 100KM/Week |
| Model Name: | H1Z2Z2-K、PV1-F | Size: | 1.5mm2--16mm2 |
|---|---|---|---|
| Voltage Suitable: | 1.5kV DC | Certificate: | TUV Rheinland, ROHS |
| Conductor Type: | Tinned Copper Flexible Conductor | Sheath: | Sunlight Resistant PVC |
| Temperature Rating: | -40C Up To +120℃ | Application: | Solar Power Station/Solar Power System |
| High Light: | 1.5mm2 Round 10 gauge pv wire,1.5mm2 twin core 10 gauge pv wire,1.5mm2 10 gauge twin core solar cable |
||

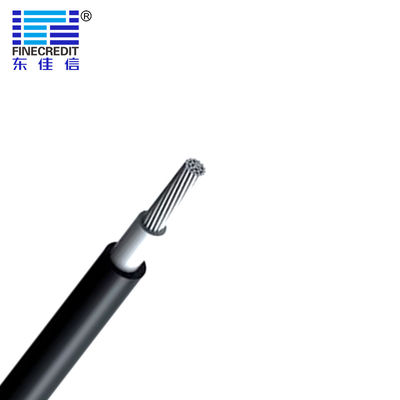

PV1-F/H1Z2Z2-K
Solar cable is the interconnection cable used in photovoltaic power generation. A solar cable interconnects solar panels and other electrical components of a photovoltaic system. Our solar cables are designed to be UV resistant and weather resistant. Service life 25 years.
|
Conductor
|
Tinned Fine Re Copper Strand, according to VDE0295/IEC60228. Class 5
|
|
Insulation
|
Polyolefin Copolymer electron-beam coss-linked
|
|
Sheath Jacket
|
Polyolefin Copolymer electron-beam coss-linked
|
|
Nominal Voltage
|
Uo/U=1000VAC, 1500VDC
|
|
Test Voltage
|
6500V, 50Hz, 5Min
|
|
Temperature Rating
|
-40°C-120°C ,More than 25 Years
|
|
Fire Performance
|
IEC 60332-1
|
|
Smoke Emission
|
IEC61034, EN 50286-2
|
|
Low Fire Load
|
DIN 51 900
|
|
Certification
|
TUV
|
Characteristic:
1. Double insulating sheath :Double-layer protection has longer life,anti-aging and moderate softness.
2. Halogen-free,High heat-resistant,Flame retardant :use of high-standard insulating Xlpe materials,refuse recycled plastics.
Future: Right now our solar cables are welcomed SUPER HOT at UK, Belgium, Germany, Huangrey, France, Australia, India etc.
Solar system industry is very hot recently and more in the future, now almost all the countries goverment are now encouraging and supporting this industry to reduce CO2 releasing.
Technical Parameter
| ecification(mm²) | Conductor stracture | Insulation thickness(mm) | Sheath thickness(mm) | Approx.cable diameter | Max resistance of conductor at 20℃ (Ω/km) | Max resistance of conductor at 20℃ (Ω/km) |
| 1.5 | 30 | 0.7 | 0.8 | 4.7 | 13.7 | 860 |
| 2.5 | 49 | 0.7 | 0.8 | 5.2 | 8.21 | 690 |
| 4 | 77 | 0.7 | 0.8 | 5.6 | 5.09 | 580 |
| 6 | 119 | 0.7 | 0.8 | 6.3 | 3.39 | 500 |
| 10 | 7×11 | 0.7 | 0.8 | 7.5 | 1.95 | 420 |
| 16 | 7×17 | 0.7 | 0.8 | 8.8 | 1.24 | 340 |
Packging details
 |
|
|
|
– Coil in foil 100m (as of 10 mm2) – Coil in cardboard (100m) as required (up to 6 mm2) |
–Electrical wire ready to delivery |
–Reel / Drum (as of 35 mm2) –Other package as required |
▼ Payment:
We usually use T/T
T/T deposit before production and balance when shipment.
Payment terms: Western Union, Escrow, Paypal, T/T ,L/C
▼ Shipping:
For big order,we will ship the goods by air or by sea.
▼ Company information:
Annual revenue is about 500 million US dollars.
30 years of experience in R & D, production and sales of wire and cable.
Invest 200 million to build a modern industrial park, covering an area of 65000 square meters.
CNAS laboratory, more than 100 testing reports.
Products are widely used in real estate, municipal, industrial support, mobile communications etc
