| Place of Origin: | CHINA |
|---|---|
| Brand Name: | DONGJIAXIN |
| Certification: | ISO9001/ISO14001/OHSAS18001/CCC/CE/RoH |
| Model Number: | YJV22 8.7/15KV |
| Minimum Order Quantity: | Negotiable |
| Price: | Negotiable |
| Packaging Details: | iron with wooden or wood or iron |
| Delivery Time: | 7-15 working days |
| Payment Terms: | L/C, T/T, Western Union, MoneyGram |
| Supply Ability: | 100KM/WEEK |
| Model Name: | YJV22 8.7/15KV | Standard: | IEC60502, IEC60228 HD620S1 |
|---|---|---|---|
| Hot Sale Size: | 70mm, 120mm,400mm,95mm | Voltage Rate: | 8.7/15KV |
| Insulation: | XLPE | Armour: | Steel Tape Or Steel Wire Armord |
| Application: | Underground | ||
| High Light: | YJLV23 Medium Voltage Power Cable,8.7kv Medium Voltage Power Cable |
||

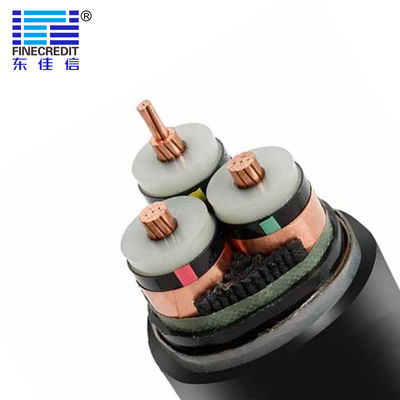

18/ 30 kV Copper conductor XLPE ( Cross-linked Polyethylene ) Insulated PVC Sheathed cable
Introduction
stranded copper conductor - conductor screen of semiconducting compound - XLPE insulation - core screen of semiconducting compound - copper tape screen - separation tape - PVC sheath
suitable for installation mostly in power supply stations, indoors and in cable ducts, outdoors, underground as well as for installation on cable trays for industries, switchboards and power stations.
| Construction characteristics | |
| Conductor shape | Circular stranded (RM) |
| Lead free | Yes |
| Insulation | XLPE |
| Screen | copper tape |
| Material of bedding | Separation tape |
| Outer sheath | PVC |
| Usage characteristics | |
| Packaging | Steel Wooden Drum |
| Minimum installation temperature | -20 °C |
| Max. conductor temperature in service | 90 °C |
| Short-circuit max. conductor temperature | 250 °C |
| Bending factor when laying | 20 (xD) |
8.7/15KV XLPE Insulated, Copper conductor, single core, screened, PVC sheathed
| ross section of conductor(mm²) | Conductor structure | Insulation thickness(mm) | sheath thickness(mm) | Approx.cable diameter(mm) | Max resistance of conductor at 20℃ (Ω/km) |
| 3×35 | 7 | 4.5 | 2.6 | 51.3 | 0.524 |
| 3×50 | 10 | 4.5 | 2.7 | 53.8 | 0.387 |
| 3×70 | 14 | 4.5 | 2.8 | 57.5 | 0.268 |
| 3×95 | 19 | 4.5 | 3.0 | 62.0 | 0.193 |
| 3×120 | 24 | 4.5 | 3.1 | 65.2 | 0.153 |
| 3×150 | 30 | 4.5 | 3.2 | 68.3 | 0.124 |
| 3×185 | 37 | 4.5 | 3.3 | 72.3 | 0.0991 |
| 3×240 | 48 | 4.5 | 3.5 | 77.9 | 0.0754 |
| 3×300 | 61 | 4.5 | 3.7 | 84.3 | 0.0601 |
| 3×400 | 61 | 4.5 | 3.9 | 91.9 | 0.0470 |
| 3×500 | 61 | 4.5 | 4.1 | 100.7 | 0.0366 |
| 3×630 | 61 | 4.5 | 4.4 | 109.7 | 0.0283 |
Application
Due to its excellent electrical insulation performance and high temperature resistance, cross-linked polyethylene
cables below 10kV are widely used to connect 10kV cable lines in ring networks, such as electric power, construction,
mining, metallurgy, petroleum, chemical, transportation, etc. Department.
CCV Line:
CCV line, which was monitored by ”SIKORA”, used to produce XLPE insulated cores with rated voltage from 6 to 35kV, and the core was vulcanized through piping.
Company information:
30 years of experience in R&D, production, and sales of wire and cable.
Invest 200 million to build a modern industrial park, covering an area of 65000 square meters.
Annual revenue is about 500 million US dollars.
CNAS laboratory, more than 100 testing reports.
Products are widely used in real estate, municipal, industrial support, mobile communications etc
▼ Payment:
We usually use T/T
T/T deposit before production and balance when shipment.
Payment terms: Western Union, Escrow, Paypal, T/T, L/C
▼ Shipping:
For big orders, we will ship the goods by air or by sea.
