| Place of Origin: | CHINA |
|---|---|
| Brand Name: | DONGJIAXIN |
| Certification: | ISO9001/ISO14001/OHSAS18001 |
| Model Number: | YJV22 8.7/15KV |
| Minimum Order Quantity: | Negotiable |
| Price: | Negotiable |
| Packaging Details: | iron with wooden or wood or iron |
| Delivery Time: | 7-15 working days |
| Payment Terms: | L/C, T/T, Western Union, MoneyGram |
| Supply Ability: | 100KM/WEEK |
| Model Name: | YJV22 8.7/15KV | Standard: | IEC60502, IEC60228 HD620S1 |
|---|---|---|---|
| Size: | 25~630mm² | Temperature Rating: | -25C Up To +90℃ |
| Conductor Type: | Class 2 | Insulation: | XLPE |
| Sheath: | Pvc , | Application: | Construction,Industrial,Underground,Power Station,BUILDING |
| High Light: | Yjlv22 15kv power cable,Yjlv22 15kv power cable,8.7 kv fireproof electrical wire |
||
Used for power transmission and distribution line with voltage rated at 35kV and below.
Compared with PVC Insulated Power Cable, xlpe power cable boasts not only characteristics of excellent electricity, mechanism, heat and aging-resistant, environment stress-resistant and chemical corrosion-resistant, but also simple structure, light weight, no restriction by laying drop, and high temperature allowance for long-term working.
1. Conductor Material: Copper, Aluminum, Aluminum Alloy
2. Conductor Counts (Cores): 1, 2, 3, 4, 5, 3+1, 4+1, 3+2
3. Nominal Sectional Area (mm2 / sq mm): 1.5, 2.5, 4, 6, 10, 16, 25, 35, 50, 70, 95, 120, 150, 185, 240, 300, 400, 500, 630, 800
4. Insulation: PVC(Polyvinyl Chloride), XLPE(Cross-Linked Polyethylene), PE (Polyethylene), etc.
5. Sheath: PVC, PE, etc.
6. Armoring: Non-Armored, Galvanized Steel Wire Armored (BS 5467 Standards), Steel Tape Armored, etc.
7. Rated Voltage (KV): 0.6/1, 1/1, 1.8/3, 3/3, 3.6/6, 6/6, 6/10, 8.7/10, 8.7/15, 12/15, 12/20, 18/20, 18/30, 21/35, 26/35
8. Maximum Working Temperature: 70°C / 90°C / 105°C, etc.
9. Features: Flexible, Fire-Resistant, Heat-Resistant, Low Smoke and Fume, Low Smoke Zero Halogen, High Temperature, etc.
10. Insulation Colors: Red, Blue, Brown, White, Black, Yellow, Two Colors, etc.
11. Sheath Color: Black
12. Application: Power Transmission and Distribution. Directly Buried or Laid in Conduit.
| Conductor |
annealed copper (stranded core) |
| Conductor Screen |
Semi-conductor (MV only) |
| Insulation |
XLPE(Cross-linked polyethylene) |
| Insulation Screen |
Semi-conductor (MV only) |
| Metalic Shield |
Copper Tape Screen or Copper wire & copper tape Shield (MV must, LV optional) |
| Filler |
Fillers strip |
| Wrapping Tape |
Non woven wrapping tape or lsoh wrapping tape |
| Inner Covering |
Extruded PVC, or LSOH (MV only) |
| Armour |
Steel Tape Armour, Steel Wire or Aluminium Wire Armor optional |
| Overall Sheath |
PVC |
Application:
These cables are most suitable for direct burial or for installation on trays or ducts, Where there is
a risk of mechanical damage, armoured cables should be used.

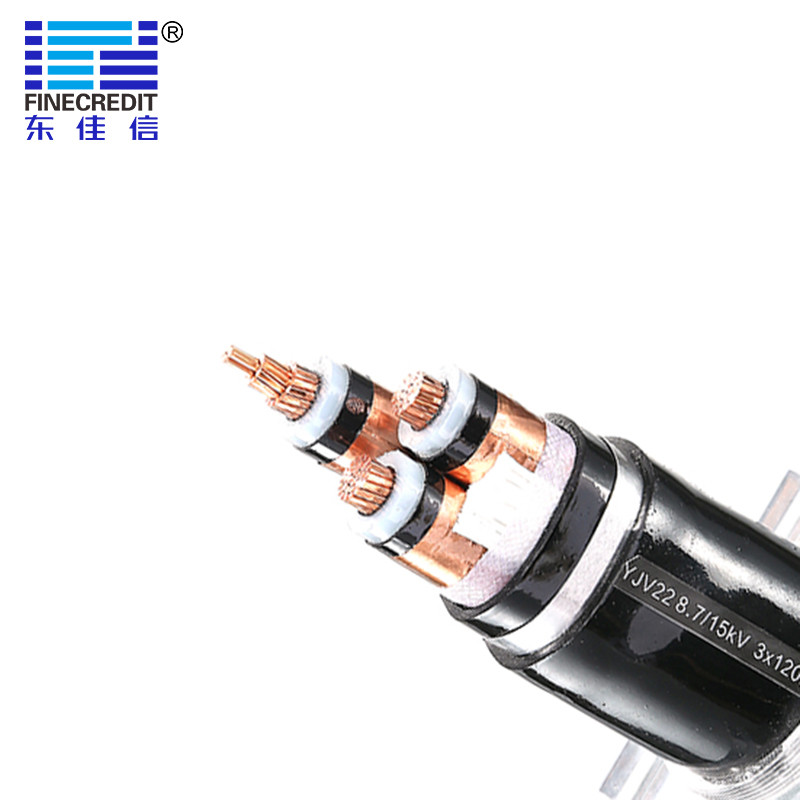

Construction:(Example of YJV32 8.7/15kV)
Copper(aluminum)conductor or conductor screen
XLPE insulation or insulation screen
Color for core identification
Assembly/beding/armoured/outer sheath.
▼ Cable Drum Data:
| CABLE DRUMS | D1=Flange Diameter(mm) | W=Useful Width (mm) | D2=Barrel Diameter(mm) |
 |
1000 | 700 | 500 |
| 1100 | 700 | 550 | |
| 1200 | 700 | 600 | |
| 1400 | 750 | 710 | |
| 1600 | 900 | 900 | |
| 1800 | 1120 | 1000 | |
| 2400 | 1150 | 1300 |
Testing process
FAQ
* How to assure the quality of products?
1. Most of our products have certification.
2. Our Lab staff will test the material and check the process card before production.
3. The O.D tester is testing all the time during production, and the production line is always under control.
4. The product will be tested by Lab staff after production.
* Do you offer free samples or not?
1. If we have inventory about the sample you need and the total amount is not large, it's free.
2. If we don't have inventory, according to our company's rule, sample and freight costs need to be paid by your esteemed company. And we will return the sample cost to you when you place the first order with us. Thanks for your support.
* When I want customized products, how to do it?
We have professional equipment, technicians & skilled employees, OEM & customized service is welcome. Drawings or samples are required. Of course, the purchased quantity should meet our MOQ.
