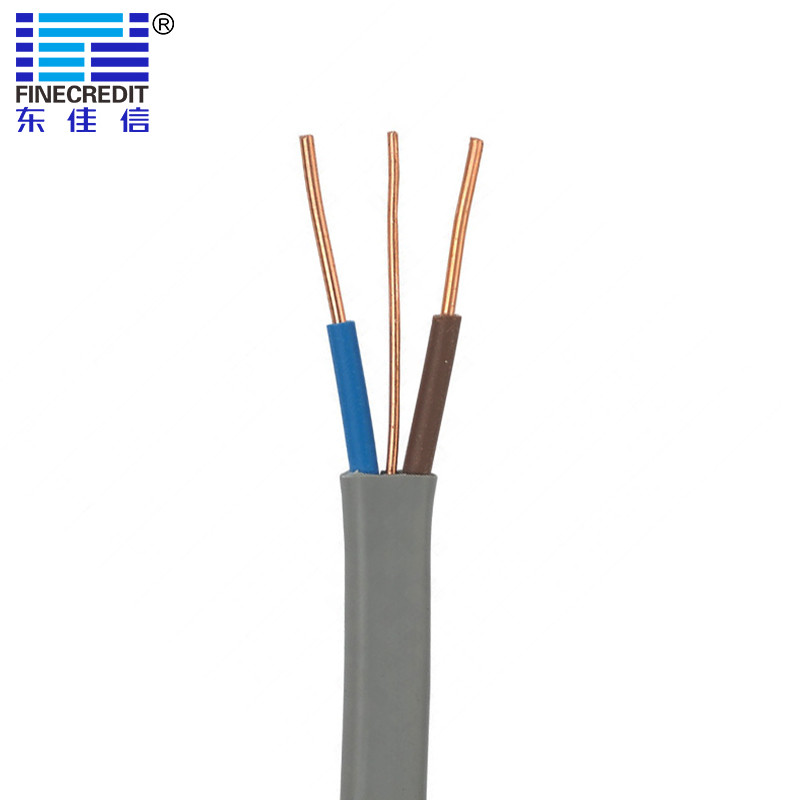

Flame Retardant EN 60228 Flat Electrical Cable 6242y 1.5mm2 2.5m2

Basic Information
Place of Origin: CHINA
Brand Name: JIAXIN
Model Number: 6242Y
Minimum Order Quantity: Negotiable
Price: Negotiable
Packaging Details: Steel wooden drum
Delivery Time: 7-15 working days
Payment Terms: L/C, T/T
Supply Ability: 100KM/Week
Product Name: 6242Y Flame Retardant: IEC/EN 60332-1-2
Minimum Bending Radius: Fixed: 6 X Overall Diameter Sheath: PVC
Temperature Rating: -5°C To +70°C Sheath Colour: Grey
Voltage Rating: 300/500V Standards: BS 6004, EN 60228
High Light:

EN 60228 Flat Electrical Cable

,

BS 6004 Flat Electrical Cable

,

6242y pvc electrical cables

Flame Retardant EN 60228 Flat Electrical Cable 6242y 1.5mm2 2.5m2



Flat Cable Twin and Earth Cable Power Cable 6242y 1.5mm2 2.5m2

1. CHARACTERISTICS

Voltage Rating Uo/U:300/500V

Temperature Rating:5°C to +70°C
2. Circuit Protection Conductor (Earth)
1mm² to 2.5mm²: Class 1 solid copper
4mm² to 16mm²: Class 2 stranded copper

3. STANDARDS
BS 6004, EN 60228
Flame Retardant according to IEC/EN 60332-1-2

4. Minimum Bending Radius

Fixed: 6 x overall diameter

5. PARAMETER



Type Designation

Number and nominal cross-sectional area of conductors

Class of conductor

Conductor Type

CPC nominal cross-sectional area of conductors

CPC Class of conductor

Conductor Type

NOMINAL THICKNESS OF INSULATION mm

NOMINAL OVERALL DIAMETER mm

NOMINAL WEIGHT kg/km

6242Y

2×1.0

1

RE

1.0

1

RE

0.6

4.2×7.8

63.1

6242Y

2×1.5

1

RE

1.0

1

RE

0.7

4.6×8.6

78.9

6242Y

2×2.5

1

RE

1.5

1

RE

0.8

5.4×10.3

116.5

6242Y

2×4

2

RM

1.5

1

RM

0.8

6.2×11.9

161.3

6242Y

2×6

2

RM

2.5

1

RM

0.8

6.9×13.4

221.8

6242Y

2×10

2

RM

4

2

RM

1

8.4×17.0

356.2

6242Y

2×16

2

RM

6

2

RM

1

9.6×19.8

522

6.PHOTO

Flame Retardant EN 60228 Flat Electrical Cable 6242y 1.5mm2 2.5m2 0

▼ Company information:

Annual revenue is about 500 million US dollars.

30 years of experience in R & D, production and sales of wire and cable.

Invest 200 million to build a modern industrial park, covering an area of 65000 square meters.

CNAS laboratory, more than 100 testing reports.

Products are widely used in real estate, municipal, industrial support, mobile communications etc

Flame Retardant EN 60228 Flat Electrical Cable 6242y 1.5mm2 2.5m2 1

CNAS Labortory

3S Safety Cable Advanced Institute of Technology with 7 laboratories, has been established in Finecredit Group,

including Electrical Performance Laboratory, Mechanical Performance Laboratory, Combustion Test Laboratory,

High Frequency Laboratory, etc. Equipped with over 50 advanced equipment and technologies.

Flame Retardant EN 60228 Flat Electrical Cable 6242y 1.5mm2 2.5m2 2

▼ Production equipment:

Flame Retardant EN 60228 Flat Electrical Cable 6242y 1.5mm2 2.5m2 3

Payment

We usually use T/T

T/T deposit before production and balance when shipment.

Payment terms: Western Union, Escrow, Paypal, T/T ,L/C

Shipping

If the quantity of the order is not very big, we usually send by express delivery,such as TNT,DHL,UPS,FEDEX or EMS.

For big order,we will ship the goods by air or by sea.
