| Place of Origin: | CHINA |
|---|---|
| Brand Name: | JIAXIN |
| Certification: | UL/CUL |
| Model Number: | UL 2464 |
| Minimum Order Quantity: | Negotiable |
| Price: | Negotiable |
| Packaging Details: | Steel wooden drum |
| Delivery Time: | 7-15 working days |
| Payment Terms: | L/C, T/T |
| Supply Ability: | 100KM/Week |
| Place Of Origin:: | Guangdong，China | Standards Certificates：: | UL 758 |
|---|---|---|---|
| Jacket:: | PVC Compound | Model Number:: | AWM 2464 |
| Sheath:: | PVC | Size:: | 2~20 Core X 18~26AWG |
| Temperature Rating:: | -20C Up To 80℃ | Fire Performance:: | VW-1 / FT1 |

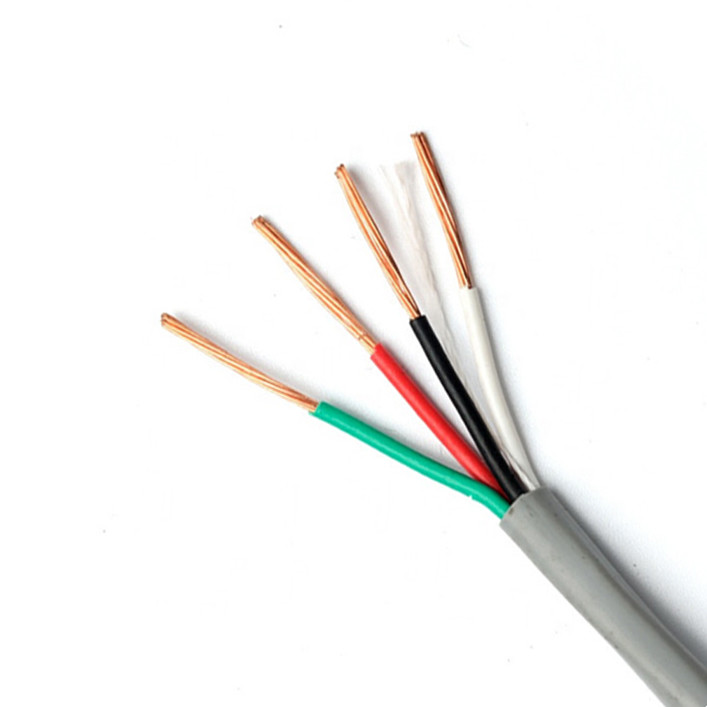

| High Light: | UL2464 26 gauge electrical wire |
||
Application
Flexible cable used for the wiring of security systems, access control, burglar alarms and other low voltage applications.
Conductor
1.Standard: UL758
2.Core Conductor:Bare Copper / Coated Copper, Solid or Stranded
3.Insulation: PVC
4.Sheath: PVC
5.Voltage Rating: 300V
6.Temperature Rating: -20ºC to +80ºC
Payment & Shipping Terms
Minimum Order Quantity:Negotiable
Price:Negotiable
Packaging Details:305m/roll
Delivery Time:Shipped within 14 days of payment
Payment Terms:L/C, T/T
Supply Ability:100KM/Week
▼ Shipping:
For big orders, we will ship the goods by air or by sea.
| ss section of conductor(mm²) | Conductor structure(mm) | Insulation thickness(mm) | Approx. cable diameter(mm) | Max resistance of conductor at 20℃ (Ω/km) |
| 0.5 | 16/0.19 | 0.6 | 2.1±0.1 | 39.0 |
| 0.75 | 24/0.19 | 0.6 | 2.3±0.1 | 26.0 |
| 1 | 32/0.19 | 0.6 | 2.5±0.1 | 19.5 |
▼Ordering Options:
For prompt quotation/supplies please make sure your inquiries and your orders are securing the following data :
1 International or Special Standard. (Alternatively, the precise usage of the cable.)
2 Rated voltage.
3 Copper or Aluminium conductors.
4 Size of each conductor.
5 Insulation material: PVC XLPE or others.
6 Number and identification of conductors.
7 Other requirements.
8 Packing.
9 Required delivery time.
10 Required validity.
If this all seems a little too technical for you, then why not get in touch with us. We look forward to assisting you in identifying the best products for your specific application and answering any questions you might have.
