Cat 6 shielding communication cable 8 core pure copper conductor network cable of CE RoHS standard

Production Description:

1. Production Parameters:

Conductor material	Pure copper, CCA
Conductor diameter	Solid one: 0.5mm, 0.56mm, 0.57mm
Conductor diameter	Stranded one: 23AWG, 24 AWG,28AWG
Num of Conductor	4P
Insulation material	PE , HDPE
Insulation diameter	0.9±0.02mm
Jacket material	PVC, ROHS PVC, LSZH

Item (n)	structure (mm)	Insulation Thickness (mm)	Approx overall dia. (mm)
FTP Cat 6	4x0.50	0.98	7.3
FTP Cat 6	4x0.55	1.03	7.4
FTP Cat 6	4x0.57	1.05	7.4

2. Production Features

The transmission frequencies of the six types of cables are 1 MHz to 250MHz.
The PS-ACR of the six types of cabling systems at 200 MHz should have a large margin, which provides two times the bandwidth of the five types. The transmission performance of the six types of cables is much higher than that of the five types of standards, which is suitable for applications with transmission rates higher than 1 Gbps.
Six types of wire are made of 23AWG pure oxygen-free copper as conductor, which has the characteristics of oxidation resistance and long service life.

3. Company Certificates

ISO9001, ISO14001, OHSAS18001, CCC, CE, CB, RoHS, China TOP 100 Enterprises in Cables industry, Guangdong TOP 20 Enterprises in Cables industry and others.

4. Tabular data

Construction

	1. Conductor material:	Solid bare copper 0.55mm
	2. Insulation material:	HDPE
	3. sheath material:	PVC sheath
	4. Shield material	AL/TC/AM
	5. Cross Separator	Environment protection PE
	6. Drain wire	TC
	7. Rip cord:	Nylon

Packaging

Approx.Weight	Package	Package Dimension(cm)	Outer packing
16.3 kg	305 m per box	42 x 42 x 24	Carton box

5. Product Image

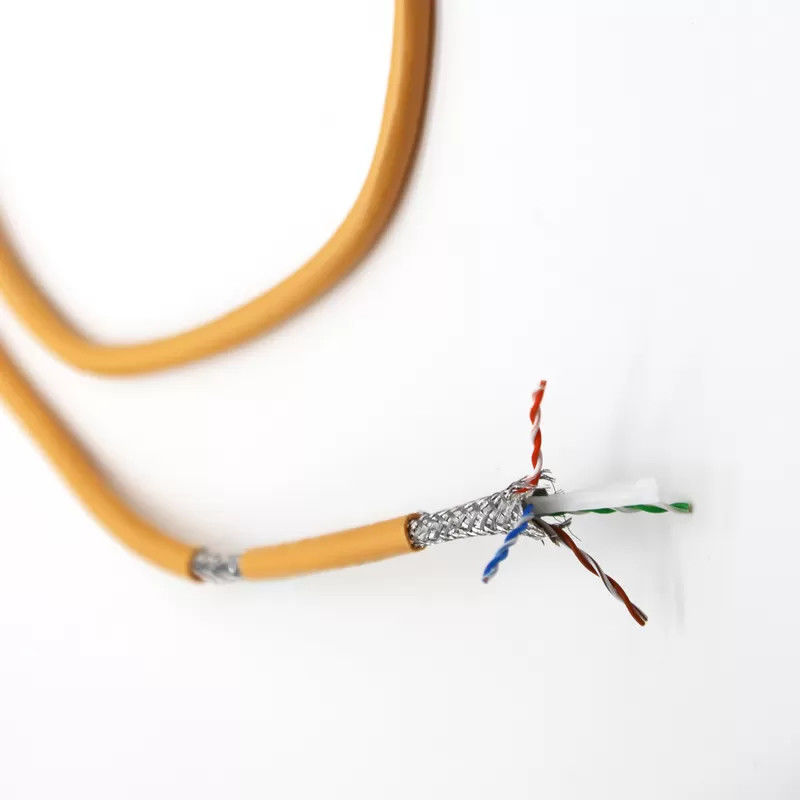

Cat6 Shielding 8 Core Ethernet Lan Cable For Communication 1

Cat 6 shielding communication cable 8 core pure copper conductor network cable of CE RoHS standard 3

Cat 6 shielding communication cable 8 core pure copper conductor network cable of CE RoHS standard 4

Product Package

Electric S/FTP Patch Cord Flexible Network Cable AL Foil Shielded Cat 6a Lan Cable 8

Packging details

– Coil in foil 100m (as of 10 mm2)

– Coil in cardboard (100m) as required (up to 6 mm2)

–Electrical wire ready to delivery

–Reel / Drum (as of 35 mm2)

–Other package as required

▼ Advantage:

Compressed Conductor easy for installation, UV - resistant , total protection for the cable

▼ Standards&Certificates:

IEC 60502-1

▼ Packing&Delivery:

Packaging details :		Delivery :

Steel Wooden Drums	Cable Drum In container	shipped in 15 days after payment

▼ Cable Drum Data:

CABLE DRUMS	D1=Flange Diameter(mm)	W=Useful Width (mm)	D2=Barrel Diameter(mm)
	1000	700	500
	1100	700	550
	1200	700	600
	1400	750	710
	1600	900	900
	1800	1120	1000
	2400	1150	1300

▼ Delivery Port :


Port of Shenzhen	Port of Hongkong	Port of Guangzhou

▼ Technical parameters:

1. Single Core

Cross section of conductor(mm²)	Conductor structure	Insulation thickness(mm)	sheath thickness(mm)	Approx.cable diameter(mm)	Max resistance of conductor at 20℃ (Ω/km)
1×1.5	1	0.7	1.4	6.0	12.1
1×2.5	1	0.7	1.4	6.4	7.41
1×4	1	0.7	1.4	6.9	4.61
1×6	1	0.7	1.4	7.3	3.08
1×10	7	0.7	1.4	8.4	1.83
1×16	7	0.7	1.4	9.4	1.15
1×25	7	0.9	1.4	11.0	0.727
1×35	7	0.9	1.4	12.0	0.524
1×50	10	1.0	1.4	13.3	0.387
1×70	14	1.1	1.4	15.1	0.268
1×95	19	1.1	1.5	17.3	0.193
1×120	24	1.2	1.5	19.0	0.153
1×150	30	1.4	1.6	20.9	0.124
1×185	37	1.6	1.6	23.0	0.0991
1×240	48	1.7	1.7	25.7	0.0754
1×300	61	1.8	1.8	28.3	0.0601
1×400	61	2.0	1.9	31.6	0.0470
1×500	61	2.2	2.0	35.1	0.0366
1×630	61	2.4	2.2	42.1	0.0283

2. 2 Core&3 Core

Cross section of conductor(mm²)	Conductor structure	Insulation thickness(mm)	sheath thickness(mm)	Approx.cable diameter(mm)	Max resistance of conductor at 20℃ (Ω/km)
2×1.5	1	0.7	1.8	10.6	12.1
2×2.5	1	0.7	1.8	11.4	7.41
2×4	1	0.7	1.8	12.4	4.61
2×6	1	0.7	1.8	13.2	3.08
2×10	7	0.7	1.8	15.4	1.83
2×16	7	0.7	1.8	17.4	1.15
2×25	7	0.9	1.8	20.6	0.727
2×35	7	0.9	1.8	22.6	0.524
2×50	10	1.0	1.8	26.2	0.387
2×70	14	1.1	1.8	29.8	0.268
2×95	19	1.1	1.9	34.0	0.193
2×120	24	1.2	2.0	37.4	0.153
2×150	30	1.4	2.2	41.2	0.124
2×185	37	1.6	2.3	45.6	0.0991
2×240	48	1.7	2.5	51.0	0.0754
2×300	61	1.8	2.6	56.0	0.0601
2×400	61	2.0	2.9	62.6	0.0470
2×500	61	2.2	3.1	70.0	0.0366
2×630	61	2.4	3.3	83.6	0.0283
3×1.5	1	0.7	1.8	11.2	12.1
3×2.5	1	0.7	1.8	12.1	7.41
3×4	1	0.7	1.8	13.2	4.61
3×6	1	0.7	1.8	14.0	3.08
3×10	7	0.7	1.8	16.4	1.83
3×16	7	0.7	1.8	18.6	1.15
3×25	7	0.9	1.8	22.0	0.727
3×35	7	0.9	1.8	24.2	0.524
3×50	10	1.0	1.8	28.0	0.387
3×70	14	1.1	1.9	32.1	0.268
3×95	19	1.1	2.0	36.4	0.193
3×120	24	1.2	2.1	40.3	0.153
3×150	30	1.4	2.3	44.3	0.124
3×185	37	1.6	2.4	49.1	0.0991
3×240	48	1.7	2.6	54.9	0.0754
3×300	61	1.8	2.7	60.1	0.0601
3×400	61	2.0	3.0	67.4	0.0470
3×500	61	2.2	3.2	75.3	0.0366
3×630	61	2.4	3.5	90.0	0.0283

3. 4 Core&5 Core

Cross section of conductor(mm²)	Conductor structure	Insulation thickness(mm)	sheath thickness(mm)	Approx.cable diameter(mm)	Max resistance of conductor at 20℃ (Ω/km)
4×1.5	1	0.7	1.8	12.2	12.1
4×2.5	1	0.7	1.8	13.1	7.41
4×4	1	0.7	1.8	14.3	4.61
4×6	1	0.7	1.8	15.3	3.08
4×10	7	0.7	1.8	18.0	1.83
4×16	7	0.7	1.8	20.4	1.15
4×25	7	0.9	1.8	24.3	0.727
4×35	7	0.9	1.8	26.7	0.524
4×50	10	1.0	1.8	30.8	0.387
4×70	14	1.1	2.0	35.4	0.268
4×95	19	1.1	2.1	40.4	0.193
4×120	24	1.2	2.3	44.9	0.153
4×150	30	1.4	2.4	49.3	0.124
4×185	37	1.6	2.6	54.7	0.0991
4×240	48	1.7	2.8	61.0	0.0754
4×300	61	1.8	3.0	67.2	0.0601
4×400	61	2.0	3.3	75.3	0.0470
4×500	61	2.2	3.5	84.0	0.0366
4×630	61	2.4	3.8	100.5	0.0283
5×1.5	1	0.7	1.8	13.2	12.1
5×2.5	1	0.7	1.8	14.2	7.41
5×4	1	0.7	1.8	15.6	4.61
5×6	1	0.7	1.8	16.7	3.08
5×10	7	0.7	1.8	19.6	1.83
5×16	7	0.7	1.8	22.3	1.15
5×25	7	0.9	1.8	26.7	0.727
5×35	7	0.9	1.8	29.4	0.524
5×50	10	1.0	1.9	34.1	0.387
5×70	14	1.1	2.1	39.1	0.268
5×95	19	1.1	2.2	44.7	0.193
5×120	24	1.2	2.4	49.7	0.153
5×150	30	1.4	2.6	54.7	0.124
5×185	37	1.6	2.8	60.6	0.0991
5×240	48	1.7	3.0	67.7	0.0754
5×300	61	1.8	3.2	74.6	0.0601
5×400	61	2.0	3.5	83.4	0.0470
5×500	61	2.2	3.8	93.4	0.0366
5×630	61	2.4	4.1	111.7	0.0283

4. 3+1 Core & 3+2 Core

Cross section of conductor(mm²)	Conductor structure	Insulation thickness(mm)	sheath thickness(mm)	Approx.cable diameter(mm)	Max resistance of conductor at 20℃ (Ω/km)
3×2.5+1×1.5	1	0.7	1.8	12.9	7.41
3×4+1×2.5	1	0.7	1.8	14.0	4.61
3×6+1×4	1	0.7	1.8	15.1	3.08
3×10+1×6	7	0.7	1.8	17.3	1.83
3×16+1×10	7	0.7	1.8	19.8	1.15
3×25+1×16	7	0.9	1.8	23.3	0.727
3×35+1×16	7	0.9	1.8	25.1	0.524
3×50+1×25	10	1.0	1.8	29.4	0.387
3×70+1×35	14	1.1	1.9	33.5	0.268
3×95+1×50	19	1.1	2.1	38.1	0.193
3×120+1×70	24	1.2	2.2	42.5	0.153
3×150+1×70	30	1.4	2.3	45.8	0.124
3×185+1×95	37	1.6	2.5	51.2	0.0991
3×240+1×120	48	1.7	2.6	57.0	0.0754
3×300+1×150	61	1.8	2.8	62.6	0.0601
3×400+1×185	61	2.0	3.1	70.1	0.0470
3×500+1×240	61	2.2	3.3	78.3	0.0366
3×630+1×300	61	2.4	3.6	92.1	0.0283
3×2.5+2×1.5	1	0.7	1.8	13.8	7.41
3×4+2×2.5	1	0.7	1.8	15.1	4.61
3×6+2×4	1	0.7	1.8	16.2	3.08
3×10+2×6	7	0.7	1.8	18.5	1.83
3×16+2×10	7	0.7	1.8	21.3	1.15
3×25+2×16	7	0.9	1.8	24.9	0.727
3×35+2×16	7	0.9	1.8	26.6	0.524
3×50+2×25	10	1.0	1.8	31.4	0.387
3×70+2×35	14	1.1	2.0	35.6	0.268
3×95+2×50	19	1.1	2.1	40.4	0.193
3×120+2×70	24	1.2	2.3	45.5	0.153
3×150+2×70	30	1.4	2.4	48.5	0.124
3×185+2×95	37	1.6	2.5	54.2	0.0991
3×240+2×120	48	1.7	2.7	60.3	0.0754
3×300+2×150	61	1.8	2.9	66.5	0.0601
3×400+2×185	61	2.0	3.2	74.3	0.0470
3×500+2×240	61	2.2	3.5	83.1	0.0366
3×630+2×300	61	2.4	3.8	97.0	0.0283

5. 4+1 Core

Cross section of conductor(mm²)	Conductor structure	Insulation thickness(mm)	sheath thickness(mm)	Approx.cable diameter(mm)	Max resistance of conductor at 20℃ (Ω/km)
4×2.5+1×1.5	1	0.7	1.8	14.0	7.41
4×4+1×2.5	1	0.7	1.8	15.3	4.61
4×6+1×4	1	0.7	1.8	16.5	3.08
4×10+1×6	7	0.7	1.8	19.1	1.83
4×16+1×10	7	0.7	1.8	21.8	1.15
4×25+1×16	7	0.9	1.8	25.8	0.727
4×35+1×16	7	0.9	1.8	28.0	0.524
4×50+1×25	10	1.0	1.9	32.8	0.387
4×70+1×35	14	1.1	2.0	37.3	0.268
4×95+1×50	19	1.1	2.2	42.7	0.193
4×120+1×70	24	1.2	2.3	47.5	0.153
4×150+1×70	30	1.4	2.5	51.6	0.124
4×185+1×95	37	1.6	2.6	57.4	0.0991
4×240+1×120	48	1.7	2.9	64.1	0.0754
4×300+1×150	61	1.8	3.1	70.6	0.0601
4×400+1×185	61	2.0	3.4	78.9	0.0470
4×500+1×240	61	2.2	3.6	88.2	0.0366
4×630+1×300	61	2.4	3.9	104.3	0.0283

▼ Company information:

30 years of experience in R & D, production and sales of wire and cable.

Invest 200 million to build a modern industrial park, covering an area of 65000 square meters.

Annual revenue is about 500 million US dollars.

CNAS laboratory, more than 100 testing reports.

Products are widely used in real estate, municipal, industrial support, mobile communications etc

Cat6 Shielding 8 Core Ethernet Lan Cable For Communication 15

Cat6 Shielding 8 Core Ethernet Lan Cable For Communication 16

Tag:

Place of Origin:	CHINA
Brand Name:	DONGJIAXIN
Certification:	CE ROHS ISO9001
Model Number:	Cat 6e

Minimum Order Quantity:	Negotiable
Price:	Negotiable
Packaging Details:	Steel wooden drum
Delivery Time:	7-15 working days
Payment Terms:	L/C, T/T
Supply Ability:	100KM/Week

Model Name:	Cat 6e	Rated Voltage:	0.6/1KV
Specification:	0.35mm--0.52mm	Nos.of Core:	2~5
Conductor Type:	OFC/TC	Sheath:	LSZH PVC
Insulation:	HDPE(High Density Polyethylene)	Application:	Telecommunication, CCTV, CCAV
High Light:	8Core Ethernet Lan Cable , Cat6 Shielding Ethernet Lan Cable
