Place of Origin: | CHINA |
---|---|
Brand Name: | JIAXIN |
Certification: | VDE/CCC/CE/RoHS |
Model Number: | H07V-R/BVR/H07V-K |
Minimum Order Quantity: | Negotiable |
Price: | Negotiable |
Packaging Details: | Steel Wooden Drum |
Delivery Time: | 7-15 working days |
Payment Terms: | L/C, T/T, Western Union, MoneyGram, D/P, T/T |
Supply Ability: | 100KM/WEEK |

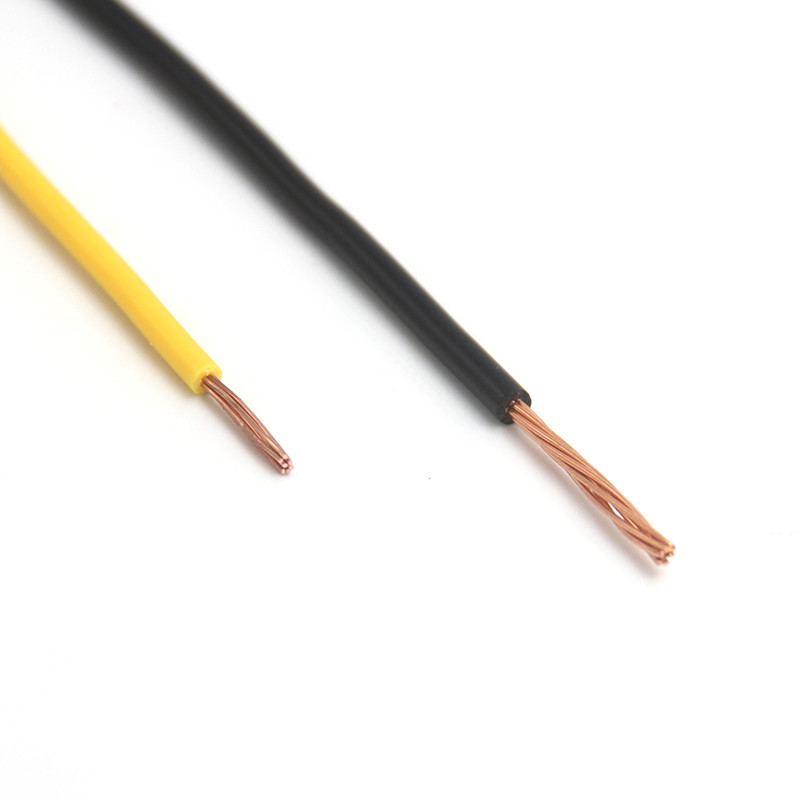

Model Name: | H07V-R Wire Cable | Standard: | VED/CE/CCC/CB |
---|---|---|---|
Size: | 1.5 To185 Mm2 | Voltage Rate: | 450/750 V |
High Lights: | Hook Up Cable, House Wiring Cables | Insulation: | PVC |
Colors: | Customized Colors | Usage: | Power And Lighting Circuits And Building Wiring |
High Light: | RoHS 1.5Mm2 electric house wiring,RoHS 185Mm2 electric house wiring,185Mm2 H07V-R flexible hook up wire |
Product category: | H07V-R |
Austrian type: | 2.5 |
Number of cores: | 1 |
Nominal cross section: | 2.5mm² |
Approx.cable diameter(mm): | 3.6 |
Conductor structure: | 19/0.40 |
Standard delivery length: | 100 m |
DC resistance of conductor at 20℃Ω/km | 7.41 |
Description
1. Applications: H07V-R is suitable for power and lighting circuits and building wiring. The cable is intended for use in semi-flush exposed conduits and embedded conduits as well as in closed installation ducts, and is ideal for the internal wiring of appliances. 2. Standards/references:
3. Certificates, approvals:
|
Technical parameters:
Product type | Conductor structure(mm) | Insulation thickness(mm) | Sheath thickness(mm) | Approx. cable diameter(mm) | Max resistance of conductor at 20℃ (Ω/km) |
H07V-R | 1.5 | 7/0.52 | 0.7 | 2.8±0.2 | 12.1 |
H07V-R | 2.5 | 7/0.67 | 0.8 | 3.4±0.2 | 7.41 |
H07V-R | 4 | 7/0.84 | 0.8 | 3.9±0.2 | 4.61 |
H07V-R | 6 | 7/1.03 | 0.8 | 4.3±0.2 | 3.08 |
H07V-R | 10 | 7/1.34 | 1.0 | 5.8±0.2 | 1.83 |
H07V-R | 16 | 7/1.67 | 1.0 | 6.8±0.2 | 1.15 |
H07V-R | 25 | 7/2.12 | 1.2 | 8.4±0.2 | 0.727 |
H07V-R | 35 | 7/2.49 | 1.2 | 9.4±0.2 | 0.524 |
H07V-R | 50 | 19/1.77 | 1.4 | 11.6±0.2 | 0.387 |
H07V-R | 70 | 19/2.12 | 1.4 | 13.3±0.3 | 0.268 |
H07V-R | 95 | 19/2.49 | 1.6 | 15.6±0.3 | 0.193 |
H07V-R | 120 | 37/2.00 | 1.6 | 17.1±0.3 | 0.153 |
H07V-R | 150 | 37/2.23 | 1.8 | 19.1±0.3 | 0.124 |
H07V-R | 185 | 37/2.49 | 2.0 | 21.3±0.3 | 0.0991 |
H07V-R | 240 | 61/2.22 | 2.2 | 24.2±0.5 | 0.0754 |
H07V-R | 300 | 61/2.49 | 2.4 | 27.0±0.5 | 0.0601 |
H07V-R | 400 | 61/2.83 | 2.6 | 30.5±0.5 | 0.0470 |
H07V-R | 500 | 61/3.20 | 2.8 | 34.2±0.5 | 0.0366 |
H07V-R | 630 | 61/3.63 | 2.8 | 38.0±0.5 | 0.0283 |
Product type | Cross section of conductor(mm²) | Conductor structure(mm) | Insulation thickness(mm) | Approx. cable diameter(mm) | Max resistance of conductor at 20℃ (Ω/km) |
H07V-K | 1.5 | 30/0.24 | 0.7 | 3.0 | 13.3 |
H07V-K | 2.5 | 49/0.24 | 0.8 | 3.6 | 8.0 |
H07V-K | 4 | 56/0.29 | 0.8 | 4.2 | 5.0 |
H07V-K | 6 | 84/0.29 | 0.8 | 4.95 | 3.3 |
H07V-K | 10 | 7×11/0.39 | 1 | 6.4 | 1.91 |
H07V-K | 16 | 7×17/0.39 | 1 | 7.4 | 1.21 |
H07V-K | 25 | 7×27/0.39 | 1.2 | 9.3 | 0.78 |
H07V-K | 35 | 14×19/0.39 | 1.2 | 10.5 | 0.554 |
H07V-K | 50 | 14×27/0.39 | 1.4 | 12.8 | 0.368 |
H07V-K | 70 | 17×24/0.45 | 1.4 | 14.4 | 0.272 |
H07V-K | 95 | 23×24/0.45 | 1.6 | 16.4 | 0.206 |
H07V-K | 120 | 29×24/0.45 | 1.6 | 18.2 | 0.161 |
Testing process
Company information:
30 years of experience in R & D, production and sales of wire and cable.
Invest 200 million to build a modern industrial park, covering an area of 65000 square meters.
Annual revenue is about 500 million US dollars.
CNAS laboratory, more than 100 testing reports.
Products are widely used in real estate, municipal, industrial support, mobile communications etc
FAQ
* How to assure the quality of products?
1. Most of our products have certified.
2. Our Lab staff will test the material and check the process card before production.
3. The O.D tester is testing all the time during production, and the production line is always under control.
4. The product will be test by Lab staff after producing.
* Do you offer free sample or not?
1. If we have inventory about the sample you need and the total amount is not large,it's free.
2. If we don't have inventory, according to our company's rule, sample and freight cost need to be paid by your esteemed company. And we will return the sample cost to you when you place the first order with us. Thanks for your support.
* When I want customized products, how to do?
We have professional equipments, technicians & skilled empolyees, OEM & customized service is welcome. Drawings or samples are required. Of course, purchase quantity should meet our MOQ.
