| Place of Origin: | CHINA |
|---|---|
| Brand Name: | DONGJIAXIN |
| Certification: | ISO/IEC |
| Model Number: | BBTRZ |
| Minimum Order Quantity: | Negotiable |
| Price: | Negotiable |
| Packaging Details: | Steel wooden drum |
| Delivery Time: | 7-15 working days |
| Payment Terms: | L/C, T/T |
| Supply Ability: | 100KM/Week |
| Model Name: | BBTRZ | Conductor Type: | Bare Copper Class 2 |
|---|---|---|---|
| Size: | 1.5~630mm² | Voltage Rate: | 0.6/1kV |
| Insulation: | Mica Tape + Mineral Material | Sheath: | Corrugated Copper |
| Applicaiton: | Construction,Industrial,Underground,Power Station,BUILDING | ||
| High Light: | 5Core MICC Mineral Insulated Cable,5Core Mineral Insulated Cable |
||
|

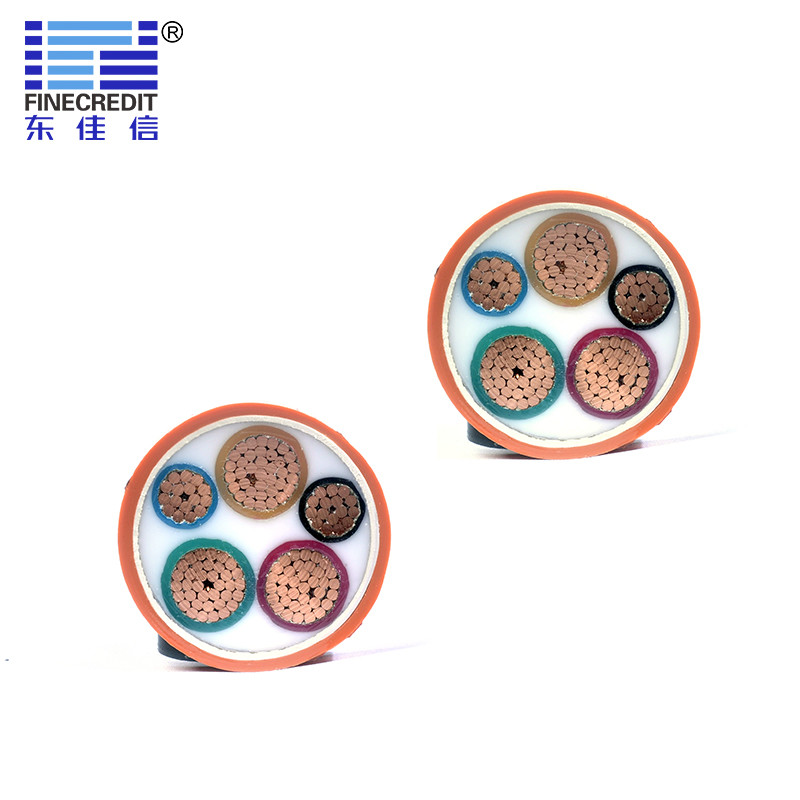

Product Name
|
Fire Proof Electrical Cable
|
|
Conductor
|
Copper
|
|
Insulation
|
Inorganic mineral synthetic mica tape,wrapped
|
|
Jacket
|
LSZH
|
|
Nos.of Core
|
2~5
|
|
Cross section(mm2)
|
10 16 25 35 50 70 95 120 150 185 240 300 400
|
|
Delivery time
|
Within 7-10 days after receiving your payment
|
|
circuit integrity under fire conditions
|
950℃,3h
|
Applications
This product apply to electrical wiring mainly for high-rise buildings, petrochemical industry, airport, tunnel, ships, offshore oil platform, aerospace, iron and steel metallurgy, shopping centers, parking lots, etc.
Standards:
BS 6387-2013 , BS 8491
We are capable of meeting the most strict delivery schedules according to per purchase order. Meeting the deadline
is always the top priority as any delay in the delivery of cable can contribute to overall project delay and cost overrun.
The cable is supplied in wooden reels, corrugated boxes, and coils. Cable ends are sealed with BOPP self-adhesive
tape and non-hygroscopic sealing caps to protect the cable end from moisture. The required marking shall be printed
with a weather-proof material on the outsides of the drum according to customers' requirements.
▼ Cable Drum Data:
| CABLE DRUMS | D1=Flange Diameter(mm) | W=Useful Width (mm) | D2=Barrel Diameter(mm) |
|
1000 | 700 | 500 |
| 1100 | 700 | 550 | |
| 1200 | 700 | 600 | |
| 1400 | 750 | 710 | |
| 1600 | 900 | 900 | |
| 1800 | 1120 | 1000 | |
| 2400 | 1150 | 1300 |
