| Place of Origin: | CHINA |
|---|---|
| Brand Name: | DONGJIAXIN |
| Certification: | IEC |
| Model Number: | VV |
| Minimum Order Quantity: | Negotiable |
| Price: | Negotiable |
| Packaging Details: | Steel wooden drum |
| Delivery Time: | 7-15 working days |
| Payment Terms: | L/C, T/T |
| Supply Ability: | 100KM/Week |
| Model Name: | VV | Application: | Industrial |
|---|---|---|---|
| Certificates: | IEC | Insulator: | PVC/XLPE |
| Conductor Type: | Stranded Bear Copper Class 2 | Sheath: | PVC |
| Temperature: | -25C Up To +90℃ | Core: | 1-5 Cores |
| High Light: | VV32 Low Voltage Power Cable,10mm2 Low Voltage Power Cable |
||

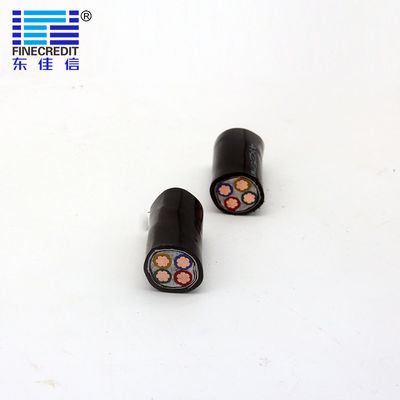

Product structure
The components from the inside to the outside are conductor, insulating layer, filling layer, (steel belt layer), and sheath layer. The most commonly used conductor material on the market today is of course copper conductor; the insulating layer and outer sheath material are both polyvinyl chloride, that is, PVC plastic; the filling layer is generally some softer nylon material, in order to prevent the internal conductor of the cable The steel tape armored VV cable is a VV22 cable. The steel tape armored function is compression resistance and can be used for underground burying.
Operating temperature
The long-term working temperature should not exceed 70℃, and the laying temperature should not be lower than 0℃; during short circuit (the longest duration should not exceed 5s) the allowable maximum temperature of the cable conductor is 160℃;
Allowable bending radius
Not less than 10 times the outer diameter of the cable;
The long-term working
temperature should not exceed 70℃, and the laying temperature should not be lower than 0℃; during short circuit (the longest duration should not exceed 5s) the allowable maximum temperature of the cable conductor is 160℃;
Allowable bending radius
Not less than 10 times the outer diameter of the cable;
XLPE Insulated copper cable include follow type and size
| Type | Name | Usage |
| VV | PVC insulated PVC sheathed power cable | Can be laid at indoor, tunnel and tube .Cable cannot under take mechanism outside force |
| VLV | ||
| VY | PVC insulated and PE sheathed power cable | Can be laid at indoor, tunnel tube and serious polluted places. Cable cannot undertake mechanism outside force |
| VLY | ||
| VLV22 | PVC insulated steel belt armored and PVC sheathed power cable | Can be laid at indoor, tunnel tube and mining well. Cable cannot undertake mechanism outside force |
| VV23 | PVC insulated steel belt armored and PE sheathed power cable | Can be laid at indoor, tunnel tube mining well and serious polluted places. Cable cannot undertake mechanism outside force |
| VLV23 | ||
| VV32 | PVC insulated fine steel wire armored PVC sheathed power cable | Can be laid at indoor, underground and mining well .Cable can undertake mechanism outside force |
| VLV32 | ||
| VV33 | PVC insulated fine steel wire armored PE sheathed power cable | Can be laid at indoor, underground .Cable can under take mechanism outside force |
| VLV33 | ||
| VV42 | PVC insulated thick steel wire armored PE sheathed power cable | Can be laid at indoor, underground,mining well .Cable can under take mechanism outside force |
| VLV42 | ||
| VV43 VLV43 |
PVC insulated fine steel wire armored PVC sheathed power cable | Can be laid at indoor, underground ,mining well and the places of be terrible polluted. Cable can under take mechanism outside force |
▼ Payment:
We usually use T/T
T/T deposit before production and balance when shipment.
Payment terms: Western Union, Escrow, Paypal, T/T, L/C
▼ Shipping:
For big orders, we will ship the goods by air or by sea.
▼ Company information:
30 years of experience in R&D, production, and sales of wire and cable.
Invest 200 million to build a modern industrial park, covering an area of 65000 square meters.
Annual revenue is about 500 million US dollars.
CNAS laboratory, more than 100 testing reports.
Products are widely used in real estate, municipal, industrial support, mobile communications etc
