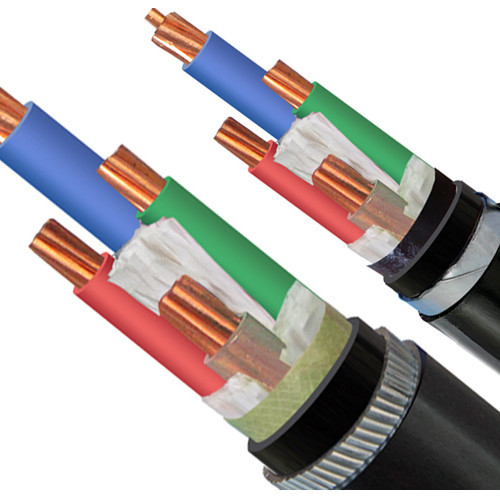

Galvanized Steel Tape Low Smoke Zero Halogen Cable Class 2 LSZH N2X2Y 10mm2

Basic Information
Place of Origin: CHINA
Brand Name: DONGJIAXIN
Certification: IEC, Rosh,CCC
Model Number: DWZA-YJY/N2X2Y
Minimum Order Quantity: Negotiable
Price: Negotiable
Packaging Details: Steel wooden drum, Coil In Foil / Drum
Delivery Time: 7-15 working days
Payment Terms: L/C, T/T
Supply Ability: 100KM/Week
Model Name: DWZA Armour: Galvanized Steel Tape
Popular Sizes: 2~5core X1.5~630mm² Insulator: XLPE
Conductor Type: Bare Copper Class 2 Sheath: PVC, ZR-PVC, PE, LSOH
Application: Underground
High Light:

LSZH Zero Halogen Cable

,

N2X2Y Zero Halogen Cable

,

Halogen Free Cable 630mm2

Low Smoke Zero Halogen Cable, Class 2, LSZH N2X2Y, 10mm2

►About Dongjiaxin: Your Reliable Partner for High-Quality Cables

Shenzhen Dongjiaxin is a top original cable manufacturer and standard cable brand for 32 years with annual sales 1 Billion US Dollars.
We use finest raw material, most advanced processes and quality management system, to ensure all cables are produced with highest international quality standard and subjected to the most stringent tests in Dongjiaxin CNAS accredited laboratories.
Dongjiaxin cable is far superior than any other brand, when compete with giant Prysmian Nexans our price more competitive, safe, reliable, durable. Dongjiaxin work with 10+ world fortune 500 companies, listed companies and export to different countries. Join in Dongjiaxin to enjoy cables beyond perfection.
Dongjiaxin qualification: ISO9001,ISO14001,ISO45001,TS16949,ISO17025,iLac,CNAS,TUV,VDE,ETL,IEC,UL,CE,RoHS,Reach,CB,CCC,CQC.

Shenzhen Dongjiaxin Cable include: Electrical wire, Power cable, Control Cable, Solar Cable, Industrial Electrical Cable, Ethernet Cable, Rubber Cable and more. With R&D on new material and technology, Dongjiaxin Cable keeps continuous improvement on its performance and replace imported brand, and become the preferable brand for large scale government projects, engineering projects and contruction, transport, industrial customers.

Galvanized Steel Tape Low Smoke Zero Halogen Cable Class 2 LSZH N2X2Y 10mm2 0

Dongjiaxin cables includes electrical wires, power cables, control cables, solar cables, industrial electrical cables, Ethernet cables, rubber cables, and more. We continuously invest in R&D for new materials and technology, allowing us to improve our cables' performance, surpass imported brands, and become the preferred brand for large-scale government projects, engineering projects, construction, transportation, and industrial customers.

Choose Dongjiaxin Cable for cables beyond perfection.



►Product Features

Reliable: Our N2X2Y LSZH sheathed 10mm2 Class 2 conductor low smoke halogen-free cable is designed to provide maximum reliability for your electrical systems.
Durable: With a durable LSZH sheath, our cable is designed for long-term use and provides excellent resistance to wear and tear.
Fireproof: Our low smoke halogen-free cable is fireproof, ensuring maximum safety in the event of a fire.
Eco-friendly: Our cable is environmentally friendly with a halogen-free design that reduces emissions.
Cost-effective: Our cable is cost-effective, making it an excellent choice for budget-conscious businesses.



"Low Smoke Zero Halogen" (LSZH) cable is a type of cable that emits very little smoke and no toxic halogen gases when it burns. This makes it safer to use in enclosed spaces and can help to prevent harm to people and damage to equipment in the event of a fire.

"Class 2" refers to the conductor is stranded. The conductor is the part of the cable that carries the electrical current.

"N2X2Y" is a type of LSZH cable that is commonly used for power distribution in indoor or outdoor environments. The "N" stands for "N2X" which indicates that the cable has a copper conductor, cross-linked polyethylene (XLPE) insulation, and a LSZH outer sheath. The "2Y" indicates that the cable has two cores.

Overall, the description "LSZH N2X2Y, 10mm2" indicates that the cable is a low smoke zero halogen cable with a copper conductor, XLPE insulation, LSZH outer sheath, and two cores, with a conductor size of 10mm2. It is likely used for power distribution in indoor or outdoor environments.





1.Low Smoke Zero Halogen: This cable emits very little smoke and no toxic halogen gases when burned, making it safer for people and equipment in enclosed spaces and in the event of a fire.

2.Copper Conductor: The cable has a copper conductor, which is an excellent conductor of electricity and provides good mechanical strength.

XLPE Insulation: The cable is insulated with cross-linked polyethylene, which provides excellent electrical insulation and resistance to moisture, heat, and chemicals.

3.LSZH Outer Sheath: The cable has a Low Smoke Zero Halogen (LSZH) outer sheath, which provides additional protection against fire and reduces the release of smoke and toxic gases in case of a fire.

4.Two Cores: The cable has two cores, which means it can carry power to two separate circuits or devices.

5.Conductor Size of 10mm2: The cable has a conductor size of 10mm2, which is a measure of the cross-sectional area of the conductor. This indicates the amount of current the cable can safely carry.

6.Suitable for Indoor and Outdoor Use: This cable is suitable for use in indoor and outdoor environments, making it a versatile and reliable choice for a range of applications.

7. Durable and Long-Lasting: The cable is built to withstand wear and tear, harsh environments, and exposure to the elements, making it a durable and long-lasting choice for power distribution.





copper conductor pvc insulated steel tape armoured multi-core power cables

Construction:

Stranded (RM) bare copper as per IEC60228
Mica Tape for Fire-Proof
XLPE (cross-linked polyethylene) Insulation
Fillers strip, Yarn, or Paper
Non woven Wrapping tape or Flame Retardant

Extruded PVC Inner Covering

Galvanized Steel Tape Armoured
Overall Sheath: polyvinylchloride (PVC) or FR-PVC, PE, LSOH



Application:


Used for tall building, Hospital, Theatre, Power station, Metro Tunnel or Petrochemical Industry or other special place required for low smoke , zero halogen clean and safe cable.



Technical data:


Test voltage 0.6/1 kV [kV] 3.5 / 5 min.
Temperature range in motion -5°C till +70°C
fixed -20°C till +70°C
Operating temperature short circuit °C 250
Short circuit time max. [sec] 5
Bending radius min. x diameter 15
Flammability standard EN 60332-1-2


Standards:



IEC 60502, 60332, 60331

DIN VDE 0276-620
HD 620 S1: 1996
DIN EN 60228 class 2 (construction)



Model Explanation:

Model Nominal Cross Section (mm2)
Single
Core
Two
Core
Three
Core
Four
Core
Five
Core
VV22 YJV22 6-400 4-300 4-300 4-300 4-300
VV32 YJV32 10-800 4-300 4-300 4-300 4-300





0.6/1kV XLPE DSTA PVC YJV22 Cable 4x300 mm2 Steel Tape Armored Electrical Power Cable



Product details

XLPE Insulation Electric Wire Cable



Type Desciption Rated Voltage NO. of Cores Nomibal section(mm2) Applications
YJV YJLV Cu or Al conductor,XLPE insulated.PVC sheathed electric cable 0.6/1KV 1,2,3,4 1.5 to 400 For laying indoors and outdoors.The LV XLPE insulated power cable is used in transmission and distribution system at rated voltagae U(Um) ≤10KV.The HV XLPE insulated power cable refers to the power cable transmission between 10KV-35KV, it is often applied to the main road of power transmission. Able to bear certain traction during installation, but not external mechanical forces.
3+1 3×4+1×2.5 to 3×400+1×185
6/6kV 1,3 25 to 500
8.7/10kV 8.7/15kV 12/20kV 1 25 to 500
3 25 to 300
21/35kv 1 50 to 500
YJV22 YJLV22 Cu or Al conductor,XLPE insulated steel tape armoured PVC sheathed electric cable 0.6/1KV 3 1.5 to 400 Suitable for burying in ground, Able to bear external mechanical forces but large pulling forces.
4 4 to 240
6/6kV 8.7/10kV 8.7/15kV 12/20kV 3 25 to 300
21/35kv 3 50 to 240



Packing&Delivery:

We are capable of meeting the most strict delivery schedules according to per purchase order. Meeting the deadline is always the top priority as any delay in the delivery of cable can contribute to overall project delay and cost overrun.
Cable is supplied in wooden reels, corrugated boxes and coils. Cable ends are sealed with BOPP self adhesive tape and non-hygroscopic sealing caps to protect the cable ends from moisture. The required marking shall be printed with a weather-proof material on the outsides of drum according to customer's requirement.

Copper Cable ZR YJV22 0.6/1kv XLPE Insulated Steel Tape Armoured FR PVC Underground Power Cable
▼ Cable Drum Data:

CABLE DRUMS D1=Flange Diameter(mm) W=Useful Width (mm) D2=Barrel Diameter(mm)
Four Core LV power cable XLPE Insulated steel tape armoured Electrical Cable 4 1000 700 500
1100 700 550
1200 700 600
1400 750 710
1600 900 900
1800 1120 1000
2400 1150 1300




▼ Delivery Port :

Four Core LV power cable XLPE Insulated steel tape armoured Electrical Cable 5 Four Core LV power cable XLPE Insulated steel tape armoured Electrical Cable 6 Four Core LV power cable XLPE Insulated steel tape armoured Electrical Cable 7
Port of Shenzhen Port of Hongkong

Port of Guangzhou




▼ Technical parameters:

1. Single Core

Cross section of conductor(mm²) Conductor structure Insulation thickness(mm) sheath thickness(mm) Approx.cable diameter(mm) Max resistance of conductor at 20℃ (Ω/km)
1×1.5 1 0.7 1.4 6.0 12.1
1×2.5 1 0.7 1.4 6.4 7.41
1×4 1 0.7 1.4 6.9 4.61
1×6 1 0.7 1.4 7.3 3.08
1×10 7 0.7 1.4 8.4 1.83
1×16 7 0.7 1.4 9.4 1.15
1×25 7 0.9 1.4 11.0 0.727
1×35 7 0.9 1.4 12.0 0.524
1×50 10 1.0 1.4 13.3 0.387
1×70 14 1.1 1.4 15.1 0.268
1×95 19 1.1 1.5 17.3 0.193
1×120 24 1.2 1.5 19.0 0.153
1×150 30 1.4 1.6 20.9 0.124
1×185 37 1.6 1.6 23.0 0.0991
1×240 48 1.7 1.7 25.7 0.0754
1×300 61 1.8 1.8 28.3 0.0601
1×400 61 2.0 1.9 31.6 0.0470
1×500 61 2.2 2.0 35.1 0.0366
1×630 61 2.4 2.2 42.1 0.0283

2. 2 Core&3 Core

Cross section of conductor(mm²) Conductor structure Insulation thickness(mm) sheath thickness(mm) Approx.cable diameter(mm) Max resistance of conductor at 20℃ (Ω/km)
2×1.5 1 0.7 1.8 10.6 12.1
2×2.5 1 0.7 1.8 11.4 7.41
2×4 1 0.7 1.8 12.4 4.61
2×6 1 0.7 1.8 13.2 3.08
2×10 7 0.7 1.8 15.4 1.83
2×16 7 0.7 1.8 17.4 1.15
2×25 7 0.9 1.8 20.6 0.727
2×35 7 0.9 1.8 22.6 0.524
2×50 10 1.0 1.8 26.2 0.387
2×70 14 1.1 1.8 29.8 0.268
2×95 19 1.1 1.9 34.0 0.193
2×120 24 1.2 2.0 37.4 0.153
2×150 30 1.4 2.2 41.2 0.124
2×185 37 1.6 2.3 45.6 0.0991
2×240 48 1.7 2.5 51.0 0.0754
2×300 61 1.8 2.6 56.0 0.0601
2×400 61 2.0 2.9 62.6 0.0470
2×500 61 2.2 3.1 70.0 0.0366
2×630 61 2.4 3.3 83.6 0.0283
3×1.5 1 0.7 1.8 11.2 12.1
3×2.5 1 0.7 1.8 12.1 7.41
3×4 1 0.7 1.8 13.2 4.61
3×6 1 0.7 1.8 14.0 3.08
3×10 7 0.7 1.8 16.4 1.83
3×16 7 0.7 1.8 18.6 1.15
3×25 7 0.9 1.8 22.0 0.727
3×35 7 0.9 1.8 24.2 0.524
3×50 10 1.0 1.8 28.0 0.387
3×70 14 1.1 1.9 32.1 0.268
3×95 19 1.1 2.0 36.4 0.193
3×120 24 1.2 2.1 40.3 0.153
3×150 30 1.4 2.3 44.3 0.124
3×185 37 1.6 2.4 49.1 0.0991
3×240 48 1.7 2.6 54.9 0.0754
3×300 61 1.8 2.7 60.1 0.0601
3×400 61 2.0 3.0 67.4 0.0470
3×500 61 2.2 3.2 75.3 0.0366
3×630 61 2.4 3.5 90.0 0.0283

3. 4 Core&5 Core

Cross section of conductor(mm²) Conductor structure Insulation thickness(mm) sheath thickness(mm) Approx.cable diameter(mm) Max resistance of conductor at 20℃ (Ω/km)
4×1.5 1 0.7 1.8 12.2 12.1
4×2.5 1 0.7 1.8 13.1 7.41
4×4 1 0.7 1.8 14.3 4.61
4×6 1 0.7 1.8 15.3 3.08
4×10 7 0.7 1.8 18.0 1.83
4×16 7 0.7 1.8 20.4 1.15
4×25 7 0.9 1.8 24.3 0.727
4×35 7 0.9 1.8 26.7 0.524
4×50 10 1.0 1.8 30.8 0.387
4×70 14 1.1 2.0 35.4 0.268
4×95 19 1.1 2.1 40.4 0.193
4×120 24 1.2 2.3 44.9 0.153
4×150 30 1.4 2.4 49.3 0.124
4×185 37 1.6 2.6 54.7 0.0991
4×240 48 1.7 2.8 61.0 0.0754
4×300 61 1.8 3.0 67.2 0.0601
4×400 61 2.0 3.3 75.3 0.0470
4×500 61 2.2 3.5 84.0 0.0366
4×630 61 2.4 3.8 100.5 0.0283
5×1.5 1 0.7 1.8 13.2 12.1
5×2.5 1 0.7 1.8 14.2 7.41
5×4 1 0.7 1.8 15.6 4.61
5×6 1 0.7 1.8 16.7 3.08
5×10 7 0.7 1.8 19.6 1.83
5×16 7 0.7 1.8 22.3 1.15
5×25 7 0.9 1.8 26.7 0.727
5×35 7 0.9 1.8 29.4 0.524
5×50 10 1.0 1.9 34.1 0.387
5×70 14 1.1 2.1 39.1 0.268
5×95 19 1.1 2.2 44.7 0.193
5×120 24 1.2 2.4 49.7 0.153
5×150 30 1.4 2.6 54.7 0.124
5×185 37 1.6 2.8 60.6 0.0991
5×240 48 1.7 3.0 67.7 0.0754
5×300 61 1.8 3.2 74.6 0.0601
5×400 61 2.0 3.5 83.4 0.0470
5×500 61 2.2 3.8 93.4 0.0366
5×630 61 2.4 4.1 111.7 0.0283

Ordering Advice:

Rated Voltage

Application Standard:IEC/BS/UL/GB

Number of Cores

Conductor Size $ Construction

Type of Insulation

Armored or unarmored. If armour, the armour type & material

The Requirement of Sheath

Length of Cable & Packing Requirement

Other Requirement

If this all seems a little too technical for you, then why not get in touch with us.We look forward to assisting you in identifying the best products for your specific application and to answer any questions you might have.

Company information:

30 years of experience in R & D, production and sales of wire and cable.

Invest 200 million to build a modern industrial park, covering an area of 65000 square meters.

Annual revenue is about 500 million US dollars.

CNAS laboratory, more than 100 testing reports.

Products are widely used in real estate, municipal, industrial support, mobile communications etc

Galvanized Steel Tape Low Smoke Zero Halogen Cable Class 2 LSZH N2X2Y 10mm2 8
