| Model Name: | WDZN-YJY Cable | Conductor Type:: | Class 2 |
|---|---|---|---|
| Fire-Proof :: | Mica Tape | Insulation :: | XLPE |
| Jacket :: | LSZH (LOW SMOKE AND HELOGEN FREE) | Flame Level :: | IEC 60332-3-22 |
| Size:: | 1.5~630mm² | Nos.of Core:: | 2~5 |
| High Light: | XLPE halogen free wire,3core halogen free wire |
||

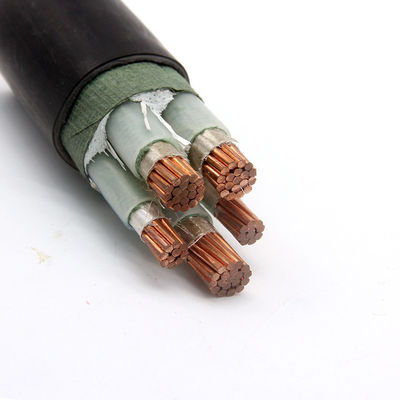

WDZBN-YJY 4*95+1*50 Low smoke halogen-free insulated power cable
▼ Product Description:
Copper Conductor XLPE Insulation and LSZH Jacket Flame retatent Power Cable
▼ Application:
1kV for Fixed installations such as distribution networks or industrial installations.
▼ Constraction:
| Core Conductor | annealed copper (stranded core) |
| Popular sizes | 2~5 core x1.5~630mm² |
| Cable conductor | stranded annealed copper |
| Insulation | XLPE |
| Jacket | LSZH |
| Temperature rating | -25C up to +90℃ |
| Voltage suitable | 0.6/1kV |
| Flame Level | IEC 60332-3-23 |
| Approval | QS in China |
▼ Advantage:
Heat resistance:
XLPE with a three-dimensional network structure has excellent heat resistance. It will not decompose and carbonize below 200℃, the long-term working temperature can reach 90℃, and the thermal life can reach 40 years;
Insulation performance:
XLPE maintains the original good insulation properties of PE, and the insulation resistance is further increased. The dielectric loss tangent value is very small, and it is not greatly affected by temperature.
Mechanical properties:
Due to the establishment of new chemical bonds between macromolecules, the hardness, stiffness, wear resistance and impact resistance of XLPE have been improved, thereby making up for the shortcomings of PE being vulnerable to environmental stress and cracking.
Chemical resistance:
XLPE has strong acid and alkali resistance and oil resistance. Its combustion products are mainly water and carbon dioxide, which are less harmful to the environment and meet the requirements of modern fire safety.
▼ Standards Certificates:
IEC 60502-1
▼Technical parameters:
1. Single Core
| Cross section of conductor(mm²) | Conductor structure | Insulation Thickness(mm) | Copper sheath thickness(mm) | Approx.cable diameter(mm) | Max resistance of conductor at 20℃ (Ω/km) |
| 1×70 | 14 | 1.1 | 1.4 | 15.1 | 0.268 |
| 1×95 | 19 | 1.1 | 1.5 | 17.3 | 0.193 |
| 1×120 | 24 | 1.2 | 1.5 | 19.0 | 0.153 |
| 1×150 | 30 | 1.4 | 1.6 | 20.9 | 0.124 |
| 1×185 | 37 | 1.6 |
1.6 |
23.0 | 0.0991 |
| 1×240 | 48 | 1.7 | 1.7 | 25.7 | 0.0754 |
| 1×300 | 61 | 1.8 | 1.8 | 28.3 | 0.0601 |
2. 2 Core&3 Core
| Cross section of conductor(mm²) | Conductor structure | Insulation Thickness(mm) | Copper sheath thickness(mm) | Approx.cable diameter(mm) | Max resistance of conductor at 20℃ (Ω/km) |
| 2×6 | 1 | 0.7 | 1.8 | 13.2 | 3.08 |
| 2×10 | 7 | 0.7 | 1.8 | 15.4 | 1.83 |
| 2×16 | 7 | 0.7 | 1.8 | 17.4 | 1.15 |
| 2×25 | 7 | 0.9 | 1.8 | 20.6 | 0.727 |
| 2×35 | 7 | 0.9 | 1.8 | 22.6 | 0.524 |
| 2×50 | 10 | 1.0 | 1.8 | 26.2 | 0.387 |
| 2×70 | 14 | 1.1 | 1.8 | 29.8 | 0.268 |
| 2×95 | 19 | 1.1 | 1.9 | 34.0 | 0.193 |
| 2×120 | 24 | 1.2 | 2.0 | 37.4 | 0.153 |
| 2×150 | 30 | 1.4 | 2.2 | 41.2 | 0.124 |
| 2×185 | 37 | 1.6 | 2.3 | 45.6 | 0.0991 |
| 2×240 | 48 | 1.7 | 2.5 | 51.0 | 0.0754 |
| 2×300 | 61 | 1.8 | 2.6 | 56.0 | 0.0601 |
| 3×6 | 1 | 0.7 | 1.8 | 14.0 | 3.08 |
| 3×10 | 7 | 0.7 | 1.8 | 16.4 | 1.83 |
| 3×16 | 7 | 0.7 | 1.8 | 18.6 | 1.15 |
| 3×25 | 7 | 0.9 | 1.8 | 22.0 | 0.727 |
| 3×35 | 7 | 0.9 | 1.8 | 24.2 | 0.524 |
| 3×50 | 10 | 1.0 | 1.8 | 28.0 | 0.387 |
| 3×70 | 14 | 1.1 | 1.9 | 32.1 | 0.268 |
| 3×95 | 19 | 1.1 | 2.0 | 36.4 | 0.193 |
| 3×120 | 24 | 1.2 | 2.1 | 40.3 | 0.153 |
| 3×150 | 30 | 1.4 | 2.3 | 44.3 | 0.124 |
| 3×185 | 37 | 1.6 | 2.4 | 49.1 | 0.0991 |
| 3×240 | 48 | 1.7 | 2.6 | 54.9 | 0.0754 |
| 3×300 | 61 | 1.8 | 2.7 | 60.1 | 0.0601 |
▼ Packaging details
 |
|
|
|
– Coil in foil 100m (as of 10 mm2) – Coil in cardboard (100m) as required (up to 6 mm2) |
–Electrical wire ready for delivery |
–Reel / Drum (as of 35 mm2) –Other packages as required |
▼ Payment:
We usually use T/T
T/T deposit before production and balance when shipment.
Payment terms: Western Union, Escrow, Paypal, T/T, L/C
▼ Cable Drum Data:
| CABLE DRUMS | D1=Flange Diameter(mm) | W=Useful Width (mm) | D2=Barrel Diameter(mm) |
|
1000 | 700 | 500 |
| 1100 | 700 | 550 | |
| 1200 | 700 | 600 | |
| 1400 | 750 | 710 | |
| 1600 | 900 | 900 | |
| 1800 | 1120 | 1000 | |
| 2400 | 1150 | 1300 |
